CNC Inspection

CNC CMM

GB Precision has invested in highly capable and accurate CMM technology. This allows us to inspect multiple features on multiple parts in a single set-up of the machine.

Capability

Mitutoyo CMMs with large working area 1000x600x500
Full CNC control including probe change rack and probe orientation for measuring complex parts with wide variety of features in one setup
Scanning capability
Wide variety of probe sizes and geometry to allow measurement in restricted spaces or small features

Equipment

Mitutoyo Crysta 7106 CNC CMM
Mitutoyo Crysta 544 CNC CMM
Mitutoyo BHN710 CNC CMM
Taylor Hobson i Series Form Talysurf
Nikon iNEXIV VMA-4540 Vision Measurement CMM

Metrology Equipment

GB Precision follows an on-going policy of investing in the latest Metrology equipment, which is housed in a dedicated Metrology Laboratory.

Capability

Contour Tracer for detailed analysis of both internal and external forms and surface features

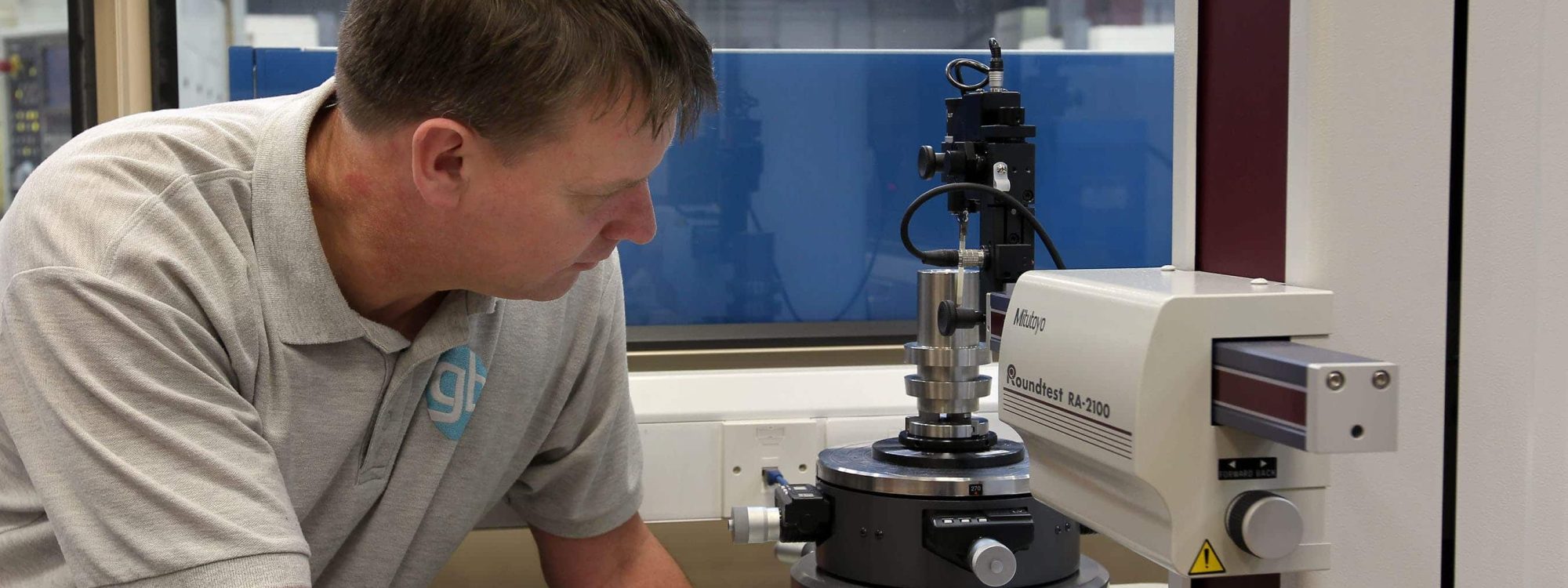

Roundness Tester for high accuracy geometric measurements of features such as roundness, concentricity and perpendicularity
Surface Roughness measurement equipment capable of measuring surface finish on both flat and curved surfaces
Variety of attachments to allow measurement in small bore diameters
Microscope and projection equipment for detailed inspection of profile and visually defined features
An extensive range of standard toolroom measuring instruments and fixtures.
Wireless Data Aquisition equipment for rapid recording of measured data
